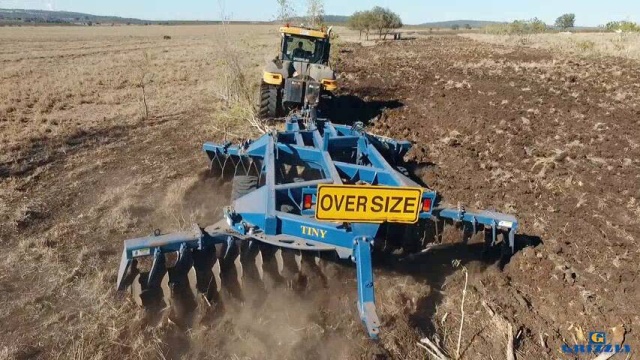

The number one choice for farmers and graziers developing new country, cleaning up suckers, maintaining buffel grass, getting country into shape in front of a laser bucket or just to get country ready for cropping.

tiny290-01
tiny290-22
tiny290-21
tiny290-20
tiny290-19
tiny290-18
tiny290-17
tiny290-16
tiny290-15
tiny290-14
tiny290-13
tiny290-12
tiny290-11
tiny290-10
tiny290-09
tiny290-08
tiny290-07
tiny290-06
tiny290-05
tiny290-04
tiny290-03
tiny290-02

The most popular for operators wanting to pull country into shape before getting into crop or for cattle farmers wanting a cultivation tool to go into country that needs to be developed after it has been chained and or blade ploughed.

Ideal for cutting out suckers that are coming back into your grazing country while achieving a good pasture renovation working.

With 290mm (11 ½”) disc spacing this machine gives you the best of both high weight per disc to enable penetration into hard to penetrate country as well as greater clearance for trash and timber yet the discs are close enough to get a full ‘cutout’ of the top soil ensuring there are no unworked strips.

TINY290 is most often bought to be used behind dozers, it features larger disc axles and bearings stepping up to a 2” disc axle with spherical twist in/out greasable bearing complete with a 2 year bearing warranty. It also features 250mm x 150mm x 16mm RHS throughout the mainframe and gang beams. We never put any more than 4 discs per disc assembly.

In turn putting less load on parts and componentry as it is distributed throughout more load bearing points giving a longer and more productive life of the machine. This also makes for easier to manage manoeuvrability of the discs when it comes time for maintenance.

Standard with 32” scalloped discs with the option to upgrade to 36” scalloped discs, this machine is a truly awesome package. For rough work where a lot of timber and foreign material will be present we have options to help deal with the rough environment, these include hydraulic hose guarding, various tyre options and for those that want to spread grass seed there is a rear platform that you can mount a seed box to.

We have heaps of options available to best configure this machine to your application. 3.5mtr transport width in sizes from 36 plate through to 60 plate in working widths from 5.13m through to 8.37m

Twist Out Bearing

Maximum reliability, minimum downtime and ease of maintenance. Grizzly’s twist in/out bearings and bearing housings with 6 bolt disc assembly. 2 year warranty on bearings. Never pull discs apart to change a bearing again. Easily changed in field.

Patented ‘T’ Bar Scraper

Grizzly Floppy “T” Bar Scraper system has proven over time to control soil and trash build up on axle spools. They allow you to continue working in all conditions. Get into a wet paddock earlier.

Hydraulic Pitch Control

Enables the set up of the machine to be fine tuned from the tractor seat. Helping to ensure a level finish. Springs give inbuilt solid impact protection and ground following ability.

Various Wheel Options

You can choose from a range of tyre types and sizes to suit your application. 28ply aero tyres shown.

Impact safety

Springs on the hydraulic pitch control allow the machine to follow through contours and help absorb impacts from underground obstacles without putting excessive stress on frame and components.

Articulated Tongue

Heavy duty fully articulated tongue gives a close tolerance connection with the tractor minimising wear and allowing for smoother operation.

Tool Box & Tool Kit

To ensure all the tools you need to perform maintenance activities on your machine are always close at hand.

Heavy Duty Componentry

Bolt on / Bolt off stub axles and wheel legs allows for serviceability in the field if required. Lockable and greasable hydraulic ram pins with hardened bushes ensure years of trouble free service.

Narrow Transport

Most models fold to 3.5 metres (11’5”) for transport or narrow gateways. Goes easily from working position to transport position. Also with hydraulic fold option.

Hydraulic Level Lift

Hydraulic level lift ensures the machine lifts out and enters the ground evenly, adding to operator ease, comfort and the performance of the machine.

Hydraulic Safety

Counter balance valves for added safety in case of a burst hose as well as relief valve to ensure no undue stress is placed on componentry.

Road Transport Options

Oversize sign, tow hitch, tail lights and spare tyre for operators doing road travel or if working in conditions that increase the chances of getting a flat.

Australian Made

Family owned and operated as well as Australian Designed and built for Aussie farmers and Aussie conditions.

Rear Seeder Platform

Seeder platform allows mounting of rear small seeds seeder to over sow grasses when doing pasture renovation work.

Heavy Duty Rollers

A view from above shows the heavy duty double rollers. There are two on each gang that run on a stainless steel track. Easily moved from transport to working position plus easy to change gang settings.

28” to 42” Discs

Choose the right machine for the job and get the disc size that will work for you in your conditions.

Hydraulic Hose Protection

For conditions where a lot of timber and other organic matter will be encountered. Protects hydraulic hoses on the pull up to the top of the frame.

Hydraulic Fold

Go from working position to folding position without leaving the cab. The ultimate game changer for operator ease and comfort.

Tiny 290 Specifications

tiny-290-specs
